PinWoofer Coin Door Unit

Name: PinWoofer Coin Door Unit
Brand: PinWoofer
SKU: PWO-CDU-SPIKE2
Price: 150.0 USD
Availability: OutOfStock

$ 150.00 USD

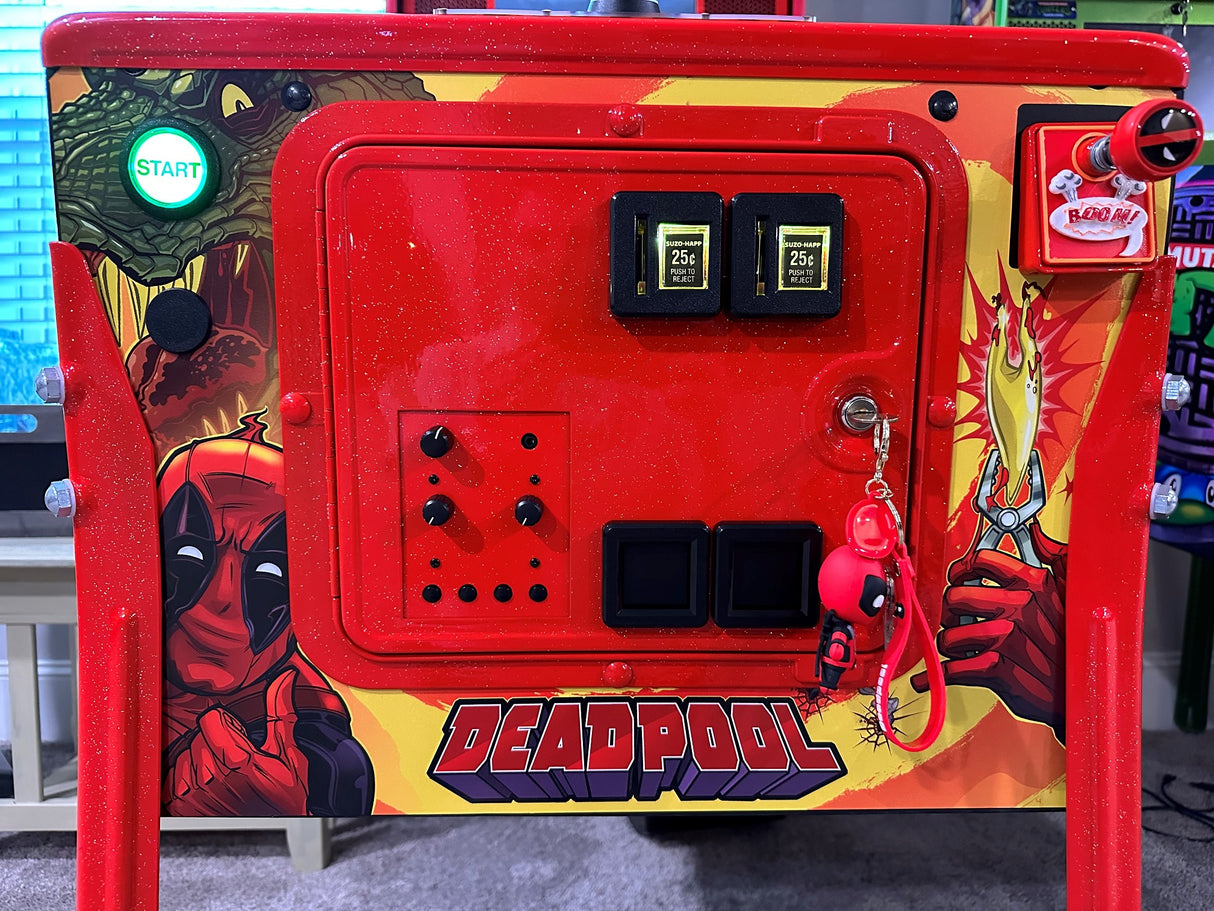

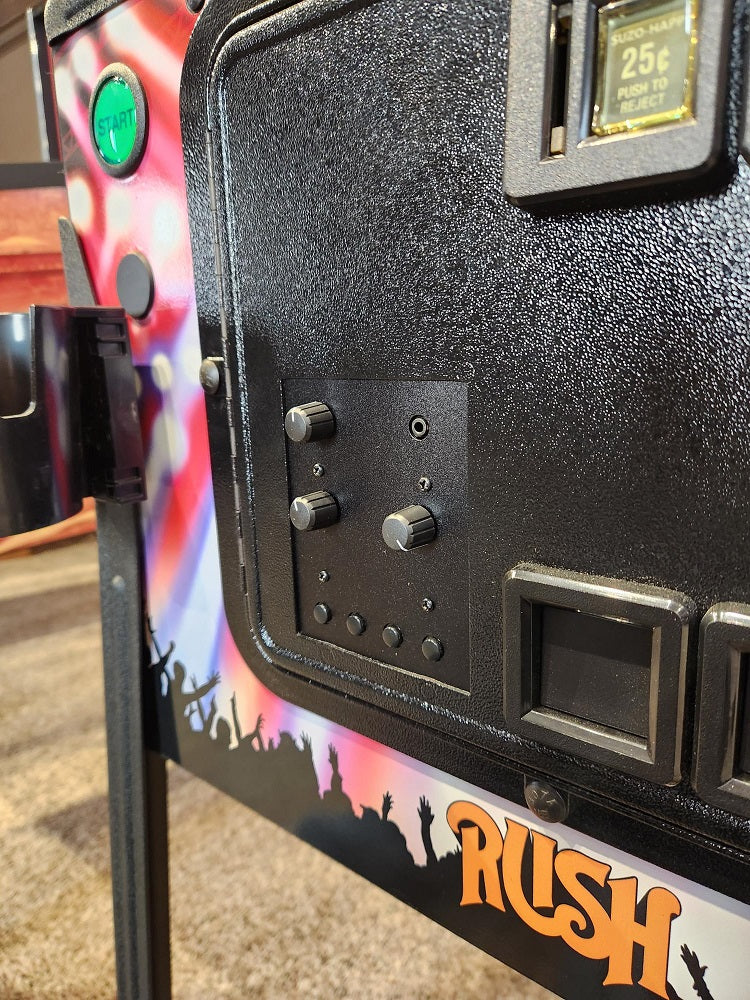

Upgrade your game controls with the PinWoofer Coin Door Unit. This device provides external access to critical controls on your coin door including sound, volume and the service menu.

The CDU provides the following features:

Machine and Headphone Volume Control
3.5mm Headphone Jack
External Subwoofer Bass Cutoff Frequency Control
External Subwoofer Volume Control
External Service Menu Buttons

Tools Required i) Cable tie cutters or scissors, 11/32 Nut Driver.

Installation time is less than one hour, subsequent installs take about 20 minutes.

Power is supplied using a provided connector board and power cable.

The CDU Backbox Module interfaces to the Spike-2 CPU node board and conveys necessary signals to the Coin Door Module.

Master & Headphone Volume controls both the machine volume (with or without a PinWoofer Amplifier Kit), and headphone volume. (Menu configurable.)

Automatic speaker cut when headphones are plugged. (Menu configurable.)

A feature found only with PinWoofer – externalized Service Menu Buttons! This allows access to and adjustment of anything in the service menu without opening the coin door. (There is a concealed disable switch found on the back of the Coin Door Module if you would like to temporarily or permanently disable the external service menu buttons.)

Features an integrated PinWoofer BBU (Bass Boost Unit) that allows for boost of the signal sent to your externally powered subwoofer. The result is an improvement in bass signal and bass quality. The BBU roll-off is quite steep (~35dB / decade above ωc) so the result is filtering of unwanted high bass that might otherwise rob power from the bass spectrum and reduce quality. It is not surprising that the result is a "purification" so to speak, of the bass signal provided to the external and less energy is wasted on high bass.

Maximum boost ~8dB (~2.5x).

Cutoff frequency is adjustable ~50-173Hz @ -3dB ωc.

Frequency roll-off ~35dB/Decade.

Key product features
